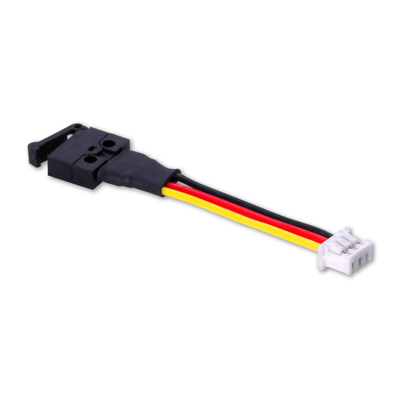

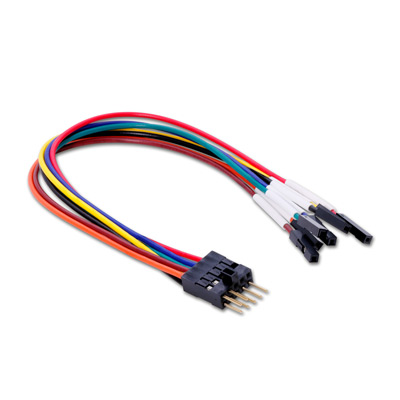

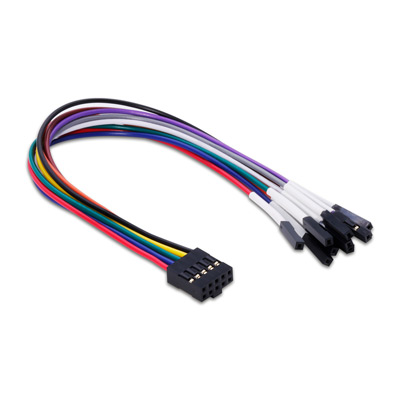

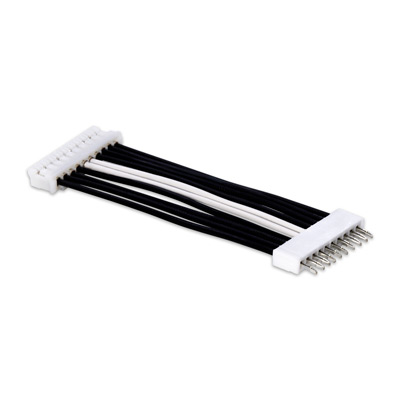

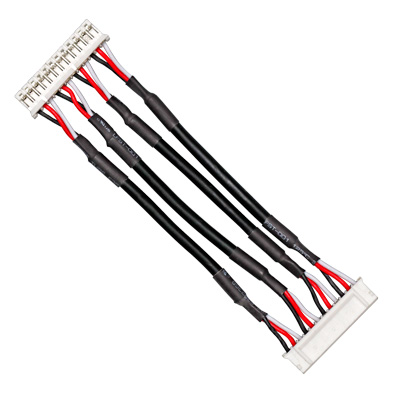

HSG Wire Harness

Product Series: Pitch 0.80, Pitch 1.00, Pitch 1.25, Pitch 1.50, Pitch 2.00, Pitch 2.50, Pitch 2.54, Pitch 3.96, Pitch 4.20





．Categorized by Type

---

The HSG Wire Harness is a high-performance wiring assembly specially designed for electrical connections. It typically consists of multiple cables, connectors, terminals, and other electronic components, used to connect different electronic devices or components for the transmission of electrical signals or current. It provides stable and efficient electrical connections, making it especially suitable for environments that require high-speed data or signal transmission.The design of HSG wire harnesses typically takes into account high strength, durability, and anti-interference capabilities to ensure reliable performance in various complex environments. Primary application areas include the automotive industry, industrial equipment, consumer electronics, medical devices, communication equipment, and aerospace.

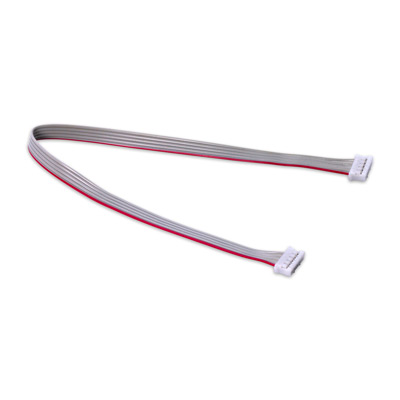

IDC also called insulation displacement connection, uses the metal terminal of the connector to pierce the end layer of the wire directly and connect the inner conductor to complete the electrical connection. Since the structure is similar with flat ribbon cables and it usually uses multi-core flat cables with piercing connectors, it can be considered as an extended application of flat ribbon cables.

Features:
．Multi-core structure: usually composed of multiple parallel electronic wires to facilitate multi-signal transmission.
．Quick connection: connection can be completed without stripping the insulation layer, improving production efficiency.
．Low cost: Eliminate welding steps and reduce processing costs.
．High reliability: Provides stable electrical contact, suitable for mass production.

Common applications:
．Consumer electronics: such as internal connections of smartphones and tablet computers.
．Computers and peripherals: signal cables for hard drives and optical drives.
．Household appliances: internal signal transmission circuits.
．Industrial Automation: Multi-signal connectivity for controllers and sensors.

FULLGLORY specializes in the manufacturing of cables and electronic components, and is a professional cable processing manufacturer based in Taiwan, Wire harness manufacturer. Our products are known for their stable quality and compliance with international standards. With comprehensive production facilities and technical support, we offer end-to-end services, from design and prototyping to mass production. We are committed to providing tailored solutions to meet your specific needs. Please feel free to contact us for inquiries!
