D-Sub cable

Product Series: VGA Cable (DE-15 / HD-15), 9 Pin D-Sub Display Cable, 37 Pin D-Sub Multi-Channel Display Cable.

D-Sub Cable is a cable that uses a D-Sub (D-Subminiature) connector, commonly used for video signal transmission, especially in older monitors and computer equipment. The D-Sub connector is characterized by its D-shaped design and multiple pins or sockets, which are used to transmit digital or analog signals. While many newer monitors have transitioned to digital interfaces such as HDMI, DisplayPort, and DVI, D-Sub connectors remain widely used in many older devices and certain professional applications

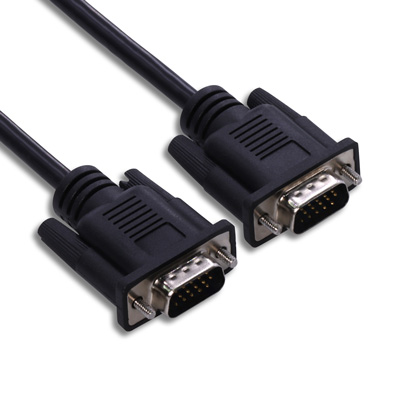

．VGA Cable (DE-15 / HD-15)
VGA is one of the most common applications of D-Sub display cables, especially with the DE-15 connector. It is typically used to connect computer monitors and graphics cards. It supports resolutions up to 1080p, but the image quality may degrade as the cable length increases. It transmits video signals only and does not support audio.
Key Applications: Monitor connections, Computers and external devices, Industrial applications.

．9 Pin D-Sub Display Cable
Primarily used for data communication or early display technologies, the 9 Pin D-Sub cable is now almost completely replaced by newer standards like VGA.
Applications:
RS-232 Communication: The 9 Pin D-Sub (DE-9) is widely used for data communication through RS-232 interfaces, including controlling display equipment or transmitting basic video signals (a rare use case).
CGA/EGA Displays: The 9 Pin connector was employed for CGA or EGA video signals, which supported only low-resolution analog displays.

．37 Pin D-Sub Multi-Channel Display Cable
Mostly used in specialized applications or for multi-channel outputs, this cable is not typically used for standard display video transmissions.
Applications:
Multi-Channel Data Transmission: The 37 Pin D-Sub (DB-37) is commonly used in applications requiring multiple signal lines, such as industrial control systems, audio/video equipment, or professional multi-channel display controllers.
Specialized Display Equipment: Certain custom professional display devices utilize the 37 Pin connector to integrate video signals, control signals, and power.

FULLGLORY specializes in the manufacturing of cables and electronic components, and is a professional Wire harness made in Taiwan, LPM OEM/ODM factory. We offer D-Sub Cable products, as well as Consumer electronics OEM/ODM design services. Our products are known for their stable quality and compliance with international standards. With comprehensive production facilities and technical support, we offer end-to-end services, from design and prototyping to mass production. We are committed to providing tailored solutions to meet your specific needs. Please feel free to contact us for inquiries!
