Wire to Board Connector -Wafer

Product Series: Pitch 0.80, Pitch 1.00, Pitch 1.20, Pitch 1.25, Pitch 1.50, Pitch 2.00, Pitch 2.50, Pitch 3.00, Pitch 3.50, Pitch 3.96, Pitch 4.20.

---

Wire to Board Connector is mainly used to connect wires to printed circuit boards (PCB) to achieve signal and power transmission.

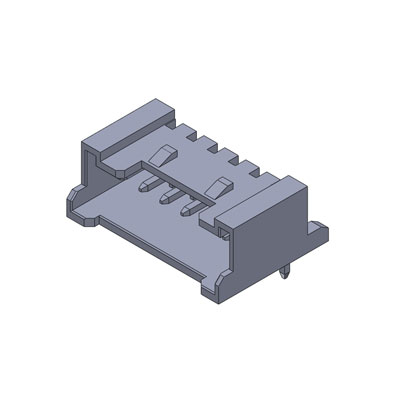

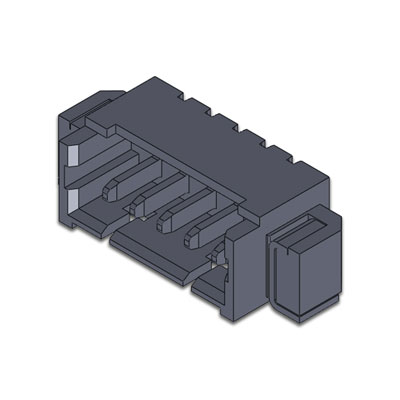

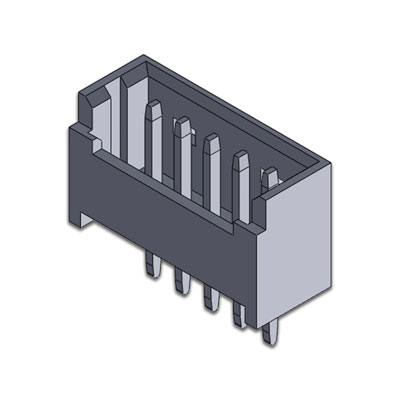

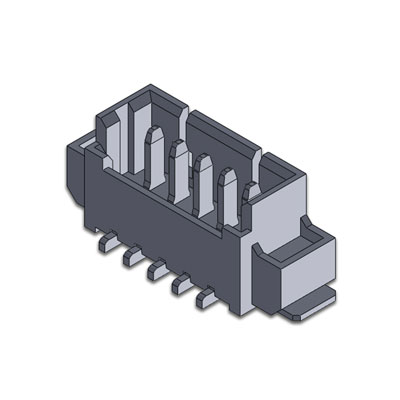

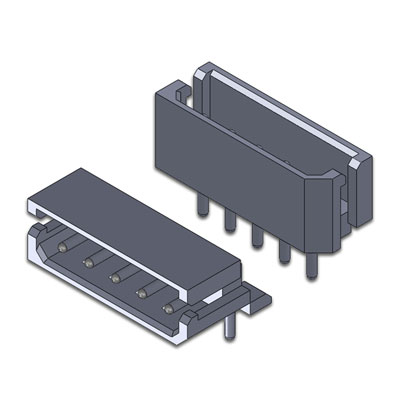

Wafer Connector is a type of Wire to Board. Used to fix wires and connect to the header on the printed circuit board (PCB). The invention has the advantages of simple structure, low cost and convenient assembly. Compared with other types of Wire to Board connectors (such as Terminal Block or IDC), it has a higher degree of modularity and standardization, and is very suitable for use in small and lightweight electronic device designs.

The board-side wafer connector combines a variety of material options (such as high-strength plastic and high-conductivity metal terminals) with flexible design structures (such as spacing, locks, and usage classification), and can adapt to a variety of electronic equipment applications. Choosing a suitable wafer requires considering factors such as electrical performance, environmental requirements, and installation convenience. According to function, application and structural design, it can be divided into the following categories:
． Pitch: large pitch wafer (2.54mm or above), small pitch wafer (2.0mm, 1.25mm or smaller).

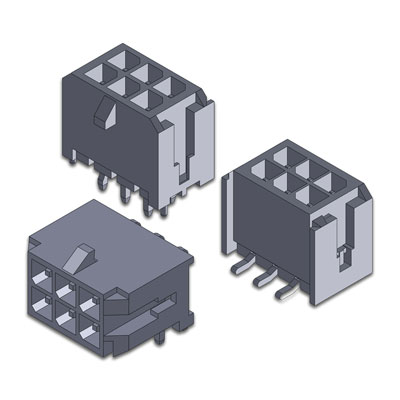

． Structure: single row, double row or multi-row.
． Plug-in method: ordinary plug-in type, lock type, solder-free type (IDC Wafer).
． Application: signal transmission type, power transmission type.
． Environmental requirements: waterproof, high temperature durable.

Fullglory Technology focuses on the manufacturing of wires and electronic parts. It is a professional board-end wafer connector manufacturing factory, waterproof connector manufacturing factory, connector manufacturer, and pin and socket header manufacturer. We supply Wafer connector products and provide wire material processing, OEM design, consumer electronics OEM, consumer electronics design, and low-pressure molding OEM services. The product quality is stable and meets international standards. With complete production equipment and technical support, we provide one-stop service from design, prototyping to mass production. We can provide you with customized solutions, please contact us!
