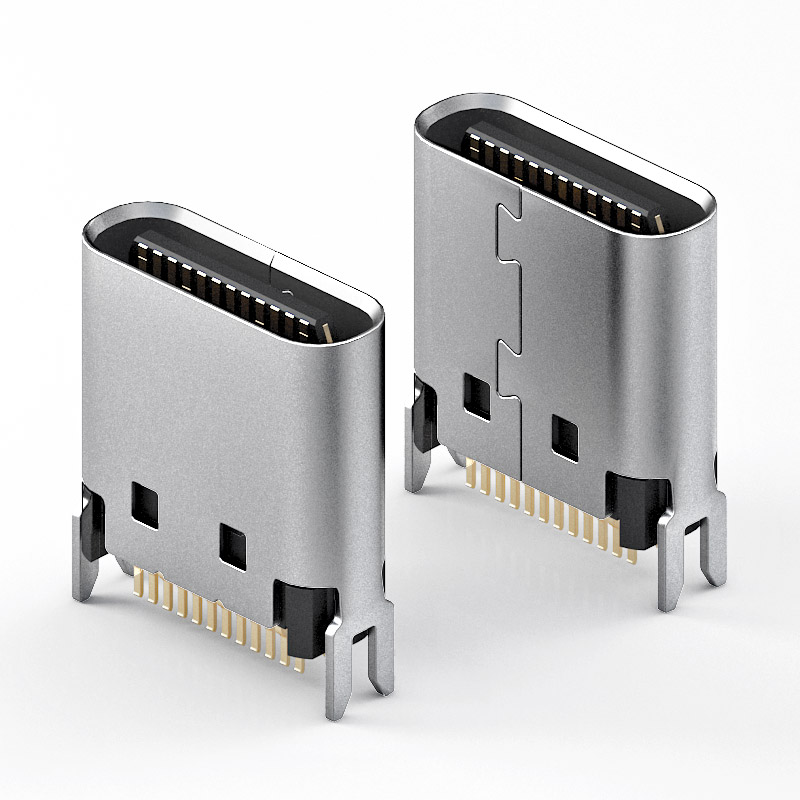

FTPC24-FCMxTB-A64-x / FTPC24-FCMxTB-A62-x
USB 3.2 Type-C female Connector 24Pin Vertical Body length 8.80~10.50 Clip Type
．P/N：FTPC24-FCMxTB-A64-x
．for PCB thickness：1.0mm
．Insertion force：5N~20N
．Withdrawal force：8N~20N
．Life：10,000 cycles
．Mount type：Clip Type
．Shell material：stainless steel
．Packaging：Tray
．High speed support：USB 3.2
．P/N：FTPC24-FCMxTB-A62-x
．for PCB thickness：0.8mm
．Insertion force：5N~20N
．Withdrawal force：8N~20N
．Life：10,000 cycles
．Mount type：Clip Type
．Shell material：stainless steel
．Packaging：Tray
．High speed support：USB 3.2
．for PCB thickness：1.0mm
．Insertion force：5N~20N
．Withdrawal force：8N~20N
．Life：10,000 cycles
．Mount type：Clip Type
．Shell material：stainless steel
．Packaging：Tray
．High speed support：USB 3.2
．P/N：FTPC24-FCMxTB-A62-x
．for PCB thickness：0.8mm
．Insertion force：5N~20N
．Withdrawal force：8N~20N
．Life：10,000 cycles
．Mount type：Clip Type
．Shell material：stainless steel
．Packaging：Tray
．High speed support：USB 3.2
Product Description
🔌 USB 3.2 Type-C Female Connector 24Pin Vertical Clip | High-Speed & Reliable PCB Connectivity
The USB 3.2 Type-C female connector 24Pin vertical clip is engineered for high-performance data and power transmission in modern electronic applications. Featuring a full 24-pin configuration, this connector supports advanced USB Type-C functionality, enabling fast data transfer, power delivery, and multi-protocol compatibility. As a next-generation interface, USB Type-C provides a reversible design and enhanced versatility for a wide range of devices .
⚙️ Vertical SMT Design for Efficient PCB Integration
This USB Type-C 24Pin female connector vertical is designed with a vertical (upright) mounting structure, making it ideal for space-constrained PCB layouts. The SMT (Surface Mount Technology) configuration ensures stable soldering and efficient automated assembly, improving manufacturing reliability and reducing production costs.
🔒 Clip-Type Reinforcement for Mechanical Stability
The Type-C vertical clip connector 24Pin features a robust clip (reinforcement) structure that enhances retention strength on the PCB. This design minimizes mechanical stress during repeated insertion and removal, ensuring long-term durability and secure connections in demanding environments such as industrial equipment, embedded systems, and consumer electronics.
🚀 High-Speed Performance with USB 3.2 Capability
Compliant with USB 3.2 standards, this connector supports high-speed data transmission and efficient power delivery, making it suitable for applications requiring reliable signal integrity and fast communication. USB 3.2 technology enables significantly improved bandwidth compared to earlier USB versions .
🏭 Versatile Applications & Customization Support
Widely used in laptops, industrial PCs, IoT devices, and charging systems, this connector meets the needs of both consumer and industrial markets. Fullglory Technology Co., Ltd. also offers customization options including plating, packaging, and design modifications to meet OEM/ODM requirements.
📩 Contact Fullglory Technology today to request a quote and upgrade your product with a high-performance USB Type-C connector solution!
