PCIE-5-164-SMT-003-008
PCIE-5.0 164 Pin
．PCIE-5-036-S-N-003, 5.0-36pin, SMT
．PCIE-5-064-S-N-004, 5.0-64pin, SMT
．PCIE-5-098-S-N-005, 5.0-98pin, SMT
．PCIE-5-098-S-T-006, 5.0-98pin, SMT with tail
．PCIE-5-164-S-N-007, 5.0-164pin, SMT
．PCIE-5-164-S-T-008, 5.0-164pin, SMT with tail
．PCIE-5-064-S-N-004, 5.0-64pin, SMT
．PCIE-5-098-S-N-005, 5.0-98pin, SMT
．PCIE-5-098-S-T-006, 5.0-98pin, SMT with tail
．PCIE-5-164-S-N-007, 5.0-164pin, SMT
．PCIE-5-164-S-T-008, 5.0-164pin, SMT with tail
Product Description

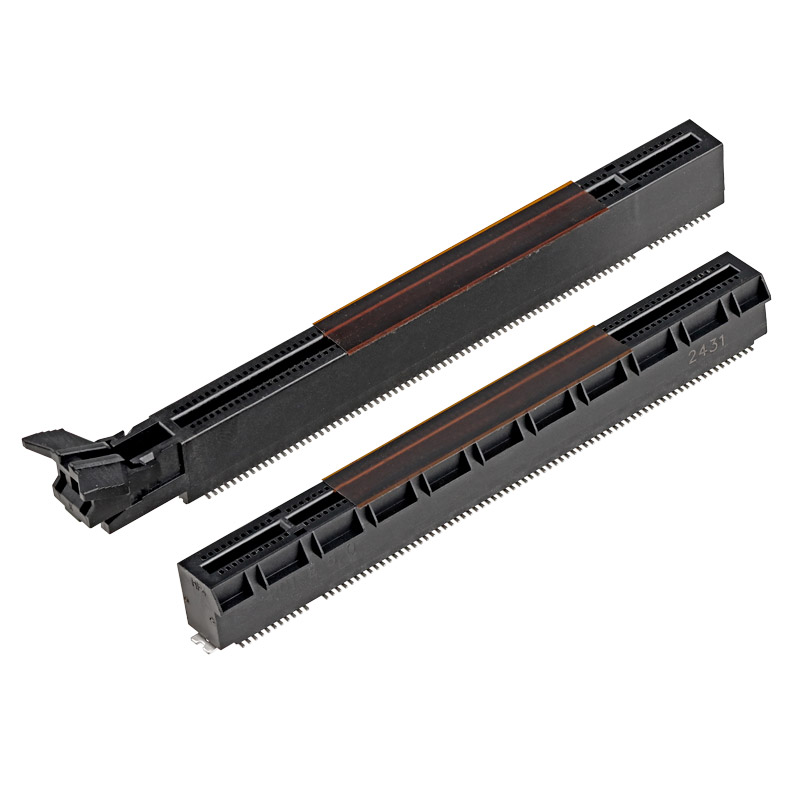

The PCIE-5.0 164-Pin connector is engineered for next-generation high-speed transmission.
Fully compliant with the latest PCI Express 5.0 specifications, it supports up to 32 GT/s and is ideal for servers, data centers, high-performance storage, GPU cards, and various expansion modules.
Designed with a 164-pin structure, it delivers precise pitch control, reliable soldering, and excellent signal integrity—perfect for high-density PCB layouts and automated assembly. Its robust mechanical design ensures stability under high-frequency transmission and frequent mating cycles, meeting enterprise-level mass-production and long-term reliability requirements.
We provide full OEM/ODM manufacturing and quality assurance, including terminal fabrication, housing assembly, SMT processes, SI testing, and final inspection.
Choosing the PCIE-5.0 164-Pin SMT connector means selecting a high-bandwidth, highly compatible, and production-ready interface solution for servers, AI computing, data centers, storage systems, and advanced industrial applications.
Contact us for samples, datasheets, or project quotations.
