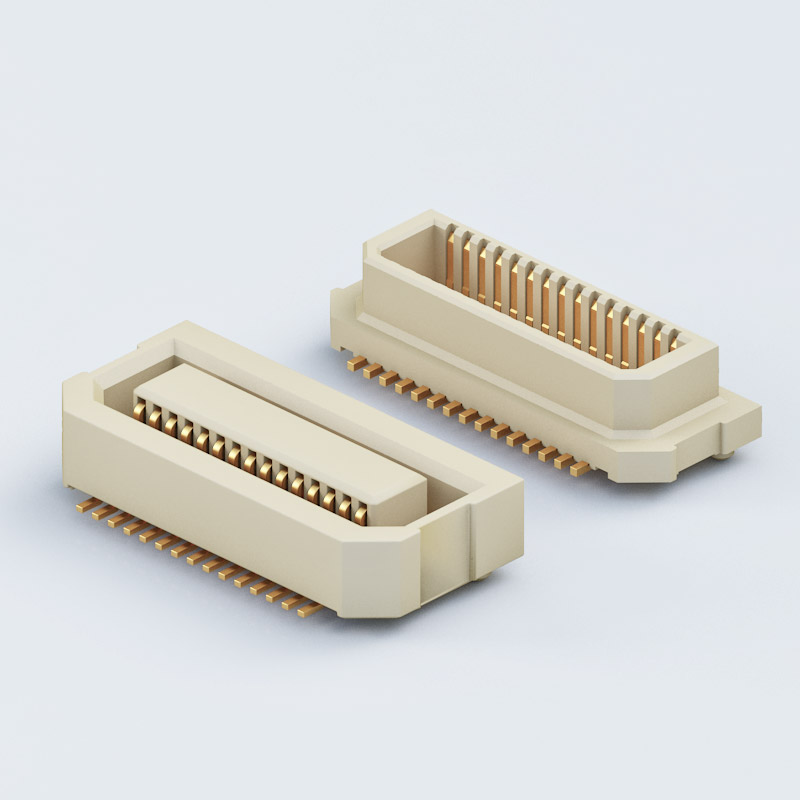

FBM05-xxxSB2-1S Male, FBF05-xxxSB2-1S Female
Pitch 0.5mm Mating Height 3.0mm Board To Board Connector
．Circuit：30~120P
．Mount type：SMT
．Alternative with Panasonic AXK6A2337YG，AXK5A2137YG
．Mount type：SMT
．Alternative with Panasonic AXK6A2337YG，AXK5A2137YG
Product Description
Designed for high-density modular applications, this 0.5 mm pitch, board-to-board connector offers a stable 3.0 mm mating height with vertical SMT mounting. Featuring phosphor bronze contacts with gold/tin plating and UL94V-0 LCP insulation, it ensures excellent conductivity, flame resistance, and durability.
With 0.5 A / 60 V rating, low 80 mΩ contact resistance, 500 MΩ insulation resistance, and wide −55 °C to +125 °C operating range, it guarantees reliable performance in harsh environments.
Ideal for smart wearables, communication devices, industrial control, and medical equipment, this connector delivers space efficiency and high reliability—an excellent interconnect solution for B2B professionals.
