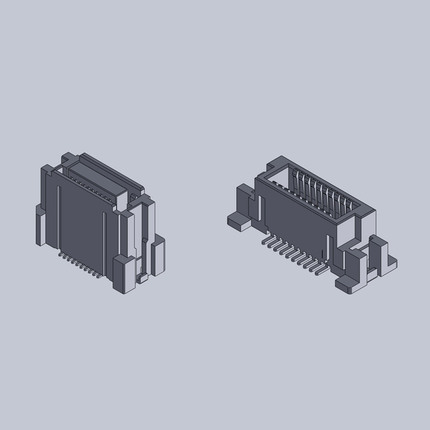

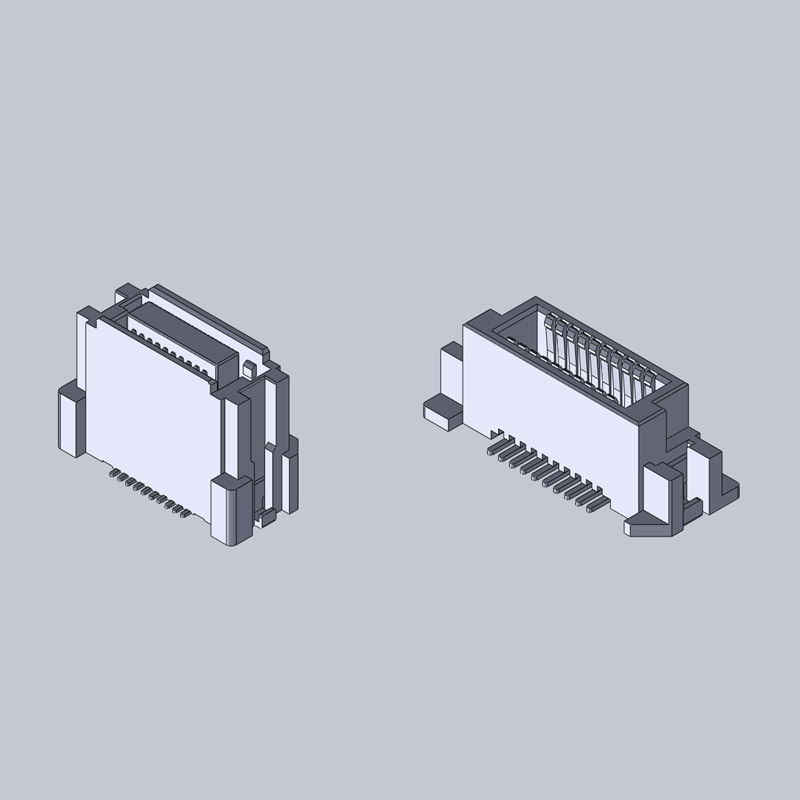

PH0.5mm Board to Board SMT Vertical, H=12.0mm

．Current Rating：0.5 A
．Voltage Rating：100V DC
．Contact Resistance：40mΩ Max.
．Insulation resistance：1000M Ω Min
．Withstanding Voltage：250V AC
．Operating Temperature：-55°C~+85°C
View More Details
BB-6-001 Details (179.01 KB) BB-6-002 Details (183.54 KB)
Specification
．Part Number：FBF06-xxxSA1-1R：Female
．Part Number：FBM06-xxxSA1-1R：Male
．Contact：I Copper Alloy, G/F Plated (T=0.20mm)
．Insulator： I LCP, UL 94V-0, White
