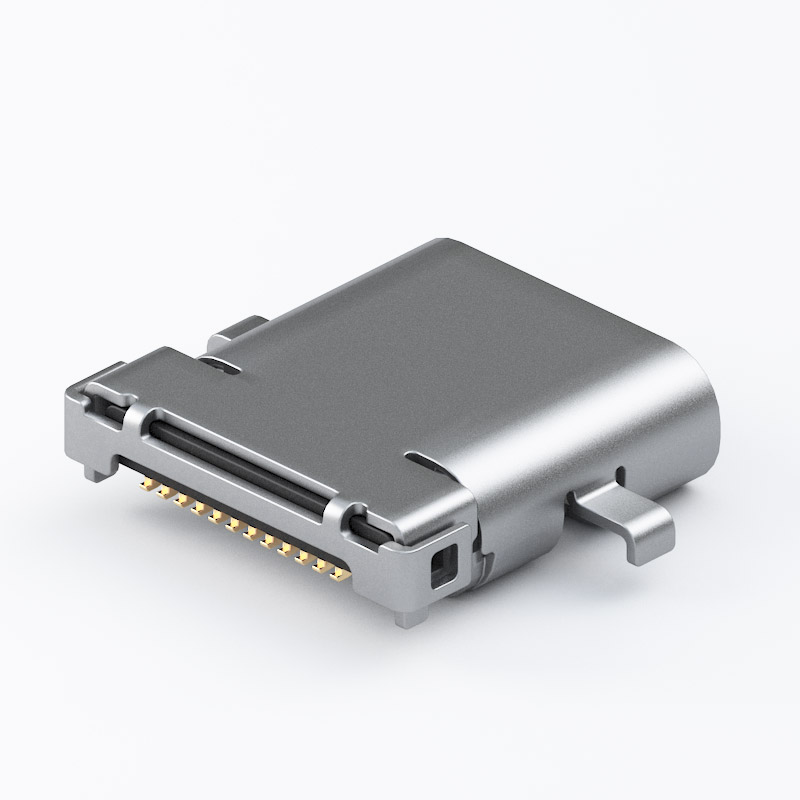

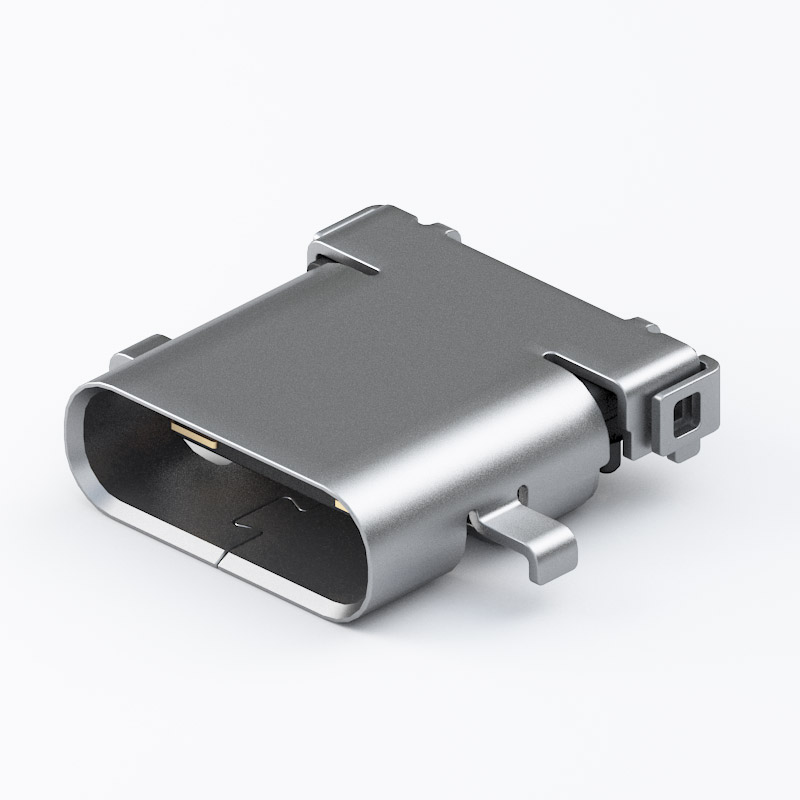

USB 3.2 Type-C Female Connector, 24Pin Body length 8.65 Below PCB 1.25

Fullglory Technology offers comprehensive OEM/ODM manufacturing capabilities, with strict quality control throughout design, sample production, verification, and mass production. The USB Type-C connector (24Pin, model TYPE-CF-24RM-02) features a hybrid DIP plus SMT connector design, with a board height of 1.91 mm above the PCB and 1.25 mm below the PCB, combining structural strength with automated assembly efficiency. This electronic component connector uses a robust metal shell and positioning peg design to effectively enhance durability against repeated insertions and removals as well as soldering stability, making it suitable for high-standard industrial control, communication, medical, and automotive applications.

Key Features:
DIP plus SMT connector technology: combines SMT placement efficiency with DIP pin robustness
Metal shell DIP pin design: positioning pegs improve soldering stability and enhance mechanical support
24Pin full-function high-speed interface: supports USB 3.2 data transmission (up to 10 Gbps) and USB-PD fast charging
Optimized board height: 1.91 mm above and 1.25 mm below the PCB for flexible compatibility with various PCB layouts
